Product Description:

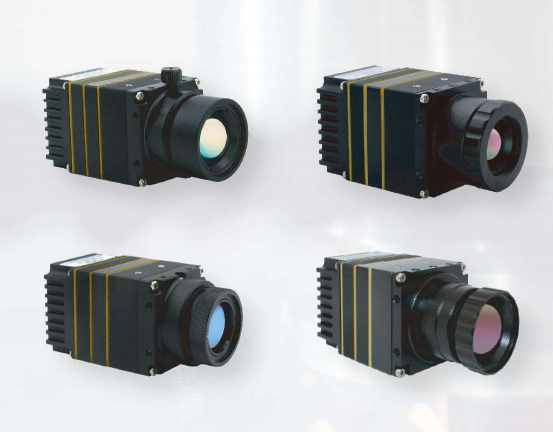

K series online infrared thermal imaging thermometer adopts uncooled infrared focal plane detector, high-performance infrared lens and signal processing circuit, and embedded advanced image processing algorithm, with small size, low power consumption, fast start-up, excellent imaging quality, accurate temperature measurement and other characteristics.
K26 series online infrared thermal imaging thermometer features:
1, with all-weather passive thermal imaging function, operating temperature range
-40℃~+60℃;
2, high frame rate design, the maximum frame rate can reach 200Hz
3, temperature calibration algorithm, to achieve accurate temperature measurement;
4, output full stream lossless 16Bit temperature data, provide SDK to support a
variety of platforms, easy for customers to integrate
More details : Click Here
Product technical specifications:
| Detector type | Uncooled focal plane microbolometer |
| resolution ratio | 640×480 |
| wavelength coverage | 8～14μm |
| Thermal sensitivity (NETD) | ≤50mk@30℃ |
| frame frequency | ≤50Hz (configurable) |
| Color palette | A variety of color palettes, including white heat, black heat, iron red, rainbow and more |
| Contrast and brightness | Automatic/manual |
| Data format | 16Bit temperature data (full stream) |
| Temperature measurement accurac |
±2℃ or ±2% |
| Temperature range | Normal temperature: -20℃ ~ 200℃ Medium temperature range: 150℃ ~ 800℃ High temperature range: 350℃ ~ 1600℃ Ultra-high temperature range: 650℃~2000℃ (optional) |
| Data interface | RJ45 |
| Network standard | Gigabit network |
| Protocol support | UDP |
| Input supply voltage | DC12V |
| Communication interface | UART@RS485, Modbus-RTU is supported |
| Data interface | RJ45 |
| Steady-state power consumption | <3W |
| Focusing mode | Manual, electric |
| Operating temperature | -40℃ ~ +60℃ |
| Storage temperature | -50℃ ~ +70℃ |
| Thermal shock resistance | 5℃/min (-40℃ ~ +60℃) |
