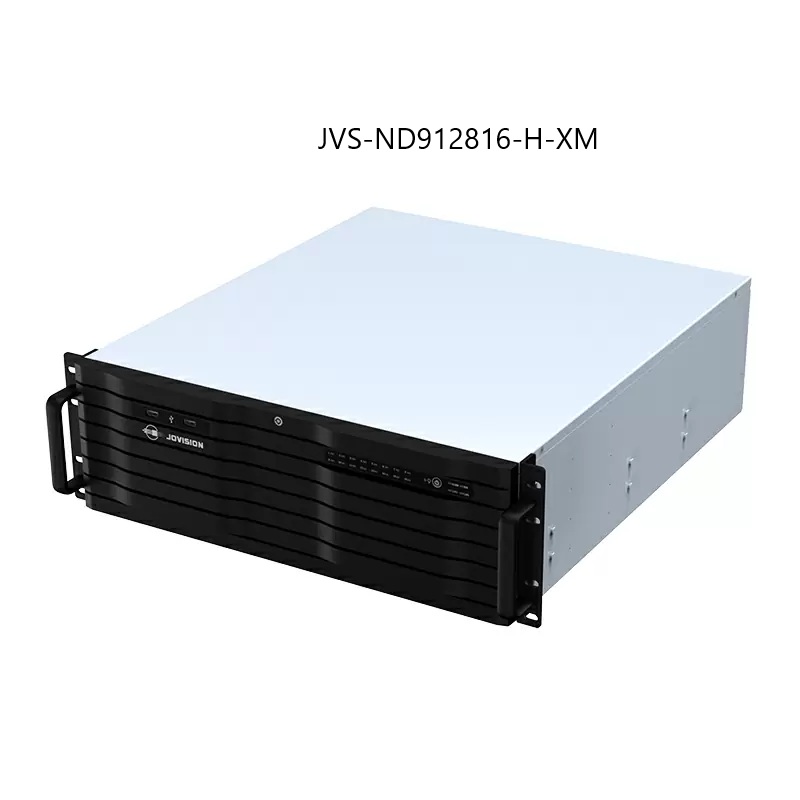

The Jovision JVS-ND912816-H-XM 128CH 16HDD H.265 NVR is a powerful network video recorder that supports up to 128 channels and 16 hard drives. Designed for professional surveillance, it features 4K video output, intelligent detection, and human detection capabilities.

Key Features :

• Support 4K Video Output
• Support 128CH 5.0Megapixel IP Cameras.
• 16x SATA, Up to 10TB Each.
• 2x HDMI, 2x VGA, 2x RJ45.
• Support Audio Input and Output
• Support Alarm Input and Output. 16 In & 4 Out.
• Support RS485
• Support Dual Network Port, Network Fault Tolerance and Load Balancing.

Specifications:

Video & Audio
IP Camera Input 128 Channel
Video Output:
HDMI:4K@60Hz/ 4K@30Hz/ 2K@60Hz/ 2K@30Hz/
1920×1080/ 1440×900/ 1280×1024/ 1280×720/1024×768
VGA: 1920×1080/ 1440×900/ 1280×1024/ 1280×720/1024×768
Audio In & Out Support
Compression H.265/ H.264
Video Access 128CH 5.0MP
Bandwidth I/O 500Mbps/320Mbps
Storage
SATA 16 x SATA Interface
Capacity Up to 10TB Max.
File Format Log: *.txt/ Picture: *.JPG/ Video: *.mp4
Backup Mode Support USB/ Portable HDD FAT32/ NTFS/ exFAT
Video
Video Playback : Auto/ Timing/ Alarm/ Motion Detection/ Intelligent Analysis
Sync Playback : 9CH 5.0MP (20fps)/ 11CH 4.0MP/ 13CH 3.0MP/ 16CH 2.0MP
Search Mode Channel Number/ Recording Type/ Date
Network
Ethernet : 100/1000Mbps Adaptive
Max. Remote Channels : 128 LAN/ 64 WAN
Network Function: TCP/IP , UDP/IP , CloudSEE, SMTP , NTP , DHCP
Interoperability: ONVIF Standard, CloudSEE 2.0
Smart Phone : iPhone, Android

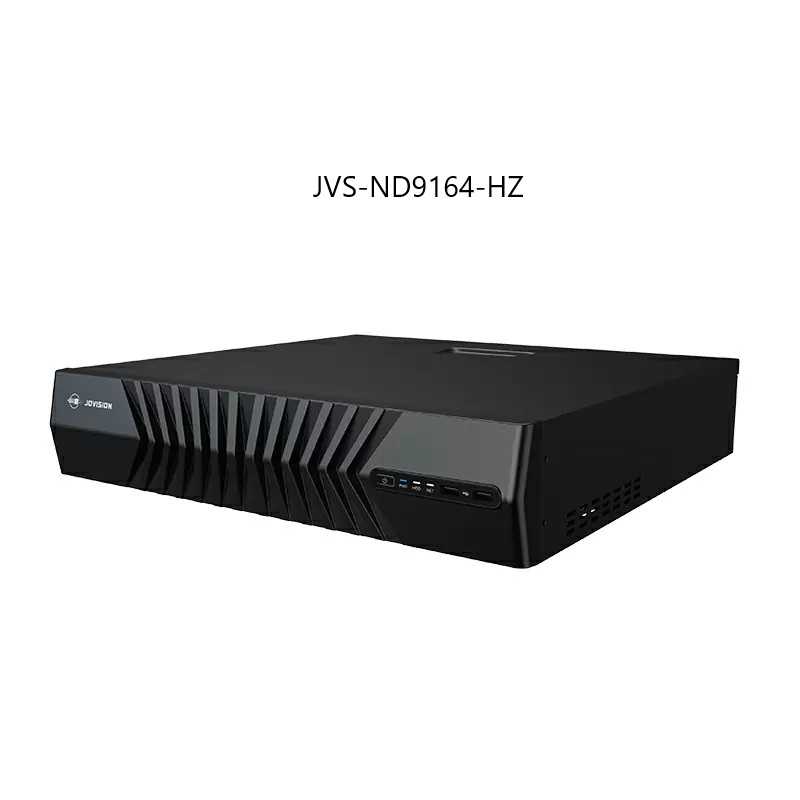

The Jovision JVS-ND9164-HZ 64 Channel NVR is a high-performance 64-channel network video recorder designed to meet your advanced surveillance needs. With an array of impressive features, this system ensures exceptional video and audio quality for your security requirements.

Key Features :

• Adopt the New Vstar GUI , Easy to Operate and Run Smoothly
• Support 4K Video Output.
• Supports 4K IP Cameras Input.
• Support Audio Input and Output.
• Support Alarm Input and Output, 16 In 4 Out
• Support 8x SATA , Up to 10TB Each.
• Support RS485

Overall, the Jovision JVS-ND9164-HZ 64-channel NVR is a powerful and reliable choice for your surveillance needs, offering top-notch performance, versatility, and user-friendly features. Ensure the safety and security of your property with this advanced surveillance solution.

Specifications:

Video & Audio
IP Camera Input 64 Channel
Video Output
HDMI: 4K@60Hz/ 4K@30Hz/ 2K@60Hz/ 2K@30Hz/
1920×1080/ 1440×900/ 1280×1024/ 1280×720/1024×768
VGA: 1920×1080/ 1440×900/ 1280×1024/ 1280x7201024x768
Max Decoding 4K/5.0MP/ 4.0MP/ 1080P/ 960P/ 720P 30fps

Audio In & Out : Support
Compression : H.265/ H.264
Video Access 128CH 5.0MP
Bandwidth I/O 500Mbps/320Mbps
Storage
SATA 8x SATA Interface
Capacity Up to 10TB Max.
File Format Log: *.txt/ Picture: *.JPG/ Video: *.mp4
Backup Mode USB 3.0 Device FAT32/ NTFS/ exFAT
Video
Video Playback Auto/ Timing/ Alarm/ Motion Detection/ Intelligent Analysis
Sync Playback 4CH 4K/9CH 5.0MP/ 11CH 4.0MP/ 13CH 3.0MP/16CH 2.0MP
Search Mode Channel Number/ Recording Type/ Date
Network
Ethernet 100/1000Mbps
Max. Remote Channels : 128 LAN/ 64 WAN
Network Function TCP/IP , UDP/IP , CloudSEE, SMTP , NTP , DHCP
Interoperability: ONVIF 2.4, CloudSEE 2.0
Smart Phone: iPhone, Android

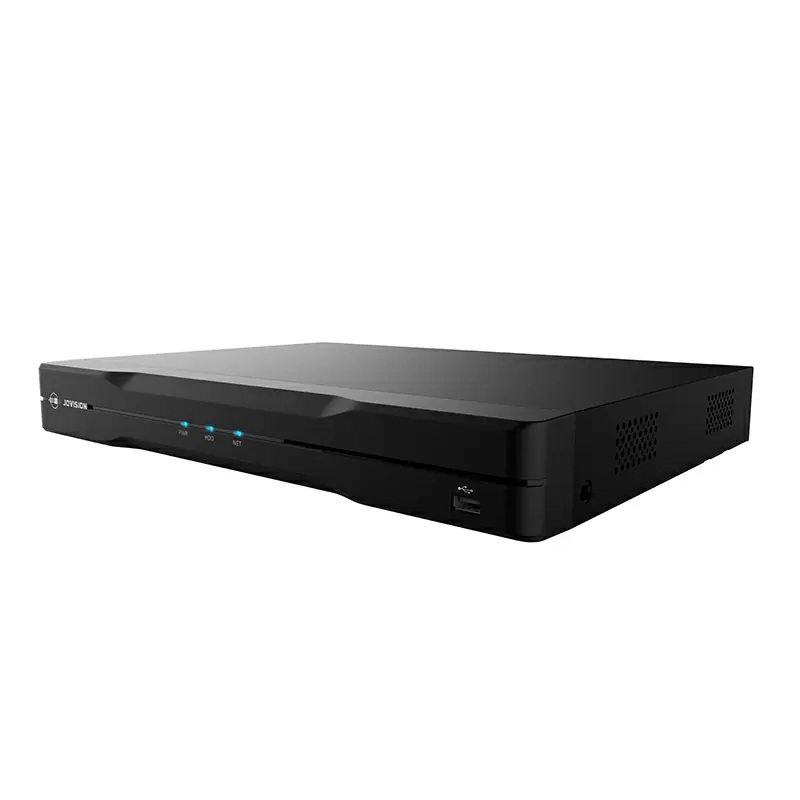

The Jovision JVS-ND7932-HV is a high-performance 32-channel H.265 NVR designed to meet advanced video and audio surveillance needs. It boasts a plethora of features, including support for up to 32 IP camera inputs and audio input/output capabilities. The Jovision JVS-ND7932-HV NVR offers versatile display options through HDMI and VGA interfaces, with various resolution choices for optimal viewing. Its powerful decoding capacity allows smooth playback of up to 32 channels at 5.0MP, 4.0MP, 1080P, 960P, or 720P and supports multiple-screen display configurations.

Key Features :

• Support 4K output
• Supports 4K IP Cameras Input.
• Support audio input and output.
• Two SATA Support, up to 10TB each.
• Two SATA Support, up to 10TB each

The network capabilities support TCP/IP, DHCP, UDP, SMTP, and NTP protocols, allowing remote monitoring through smartphone apps for both iOS and Android. With ample storage capacity of up to 8TB across its two SATA interfaces, the JVS-ND7932-HV is ready to handle extensive surveillance data.

Specifications:

Video & Audio
IP Camera Input 32 Channel
Audio Input/ Output
1CH Input,1 Channel Output, RCA; Audio output support HDMI
Bandwidth 320Mbps
Display :
Interface 1 HDMI, 1 VGA
Resolution
HDMI: 3840×2160, 1920×1080, 2560×1440, 1440×900,
1280×1024, 1280×720, 1024×768
VGA: 1920×1080, 1440×900, 1280×1024, 1280×720, 1024×768
Max Decoding 4K/ 5.0MP4.0MP/1080P/960P/720P 30fps
Multi-screen Display 1/4/5/6…32/33/34/35/36
OSD
Camera Name & Time, Recording, Alarm Detecting,
Remote connection, Volume, Channel Number

Storage
SATA 2 SATA interfaces
Capacity up to 10TB

Network
Interface 1 RJ-45 port (100/1000Mbps)
Network Function TCP/IP, DHCP, UDP, SMTP, NTP
Smart Phone iPhone, Android
Interoperability ONVIF 2.4

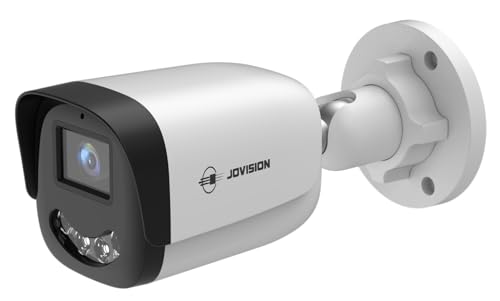

JOVISION JVS-N915-ADL UltraHD 3Mpix Bullet Outdoor PoE Smart IP Camera, is a top-tier surveillance solution designed to provide exceptional clarity and reliability for outdoor monitoring. With its UltraHD 3-megapixel resolution, this camera captures stunningly detailed images, ensuring that every critical moment is recorded with precision. The camera’s advanced 1/2.9″ CMOS sensor enhances image quality, making it ideal for both day and night surveillance. One of the standout features of the JVS-N915-ADL is its dual light technology, which enables 40 meters of color night vision.

Features :

• Dual Smart Illumination
• Support Motion Detection (Humanoid)
• Built-in Mic
• Built-in PoE
• IP67

In summary, the JOVISION JVS-N915-ADL UltraHD 3Mpix Bullet Outdoor PoE Smart IP Camera is an exceptional choice for anyone seeking a high-quality, reliable surveillance solution. With its advanced imaging capabilities, durable design, and smart features, this camera is perfect for enhancing the security of your home or business. Upgrade your surveillance system with the JVS-N915-ADL today!.

Specification :

Video

Image Sensor 1/2.9″ CMOS Sensor
Max Resolution 2304×1296
Effective Pixels 3.0MP
Compression Standard H.264/H.265
Framerate 20fps
Bitrate
Main Stream: 256Kbps ~ 4Mbps
Sub Stream: 68Kbps~1024Kbps
SNR (dB) 39dB
Min. Illumination 0Lux (light ON)
Lens
Interface Type M12
Lens 2.8mm, 3.6mm
FOV
2.8mm:H 96°, V 53°, D 110°
3.6mm:H 83.8°, V 42.7°, D 100.1°
Function
Audio Codec G.711U/G.711A (default)
Exposure Control Auto
White Balance Auto
Gain Control Auto
Digital 3D Noise Reduction Support
OSD Information Setting Large font OSD, OSD flashing on alarm, OSD position settings
SNTP Support
Schedule Reboot Support
Smart Defog Support
Motion Detection Support(Humanoid)
Network
Ethernet 10/100Mbps Ethernet
Stream 2x Streams
Network Protocols HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
ONVIF Standard ONVIF
Network Transmission CloudSEE 2.0
Browser IE8+, Chrome18+, Firefox5.0+, Safari5.02+
User Up to 13 Users
App Support iOS/Android

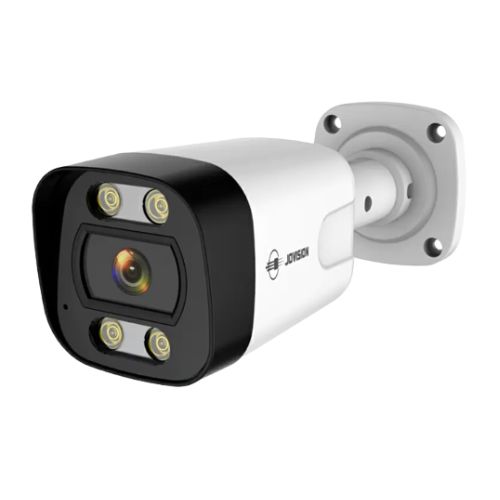

The Jovision JVS-N916-YDL 3MP IP Bullet Camera provides 3 MP with a max resolution of 2304×1296, which is 20 fps. It contains four IR LEDs and four warm LEDs. This camera detects human motion. The IR distance of this camera is up to 30 meters. The camera can get -20°C~60°C at working temperature. The lens of this camera is 3.6 mm. It uses Ethernet (10/100 Mbps) with 1 RJ45.

Key Features

• Resolution 2304×1296@20fps
• Ingress Protection IP66
• 4x IR-LED + 4x Warm-LED Up to 30 Meters
• Spotlight on motion detection
• Full-Color with Dual Smart Illumination
• Support Humanoid Detection
• With built-in PoE
• Built-in Mic

Overall, the Jovision JVS-N916-YDL 3MP IP Bullet Camera is suitable for your home, office, institution, or security surveillance.

Specification :

Video
Image Sensor 1/ 2.9” CMOS
Max Resolution 2304×1296
Effective Pixels 3.0MP
Compression Standard H.265 / H.264
Maximum Frame Rate 2304×1296@20fps
SNR(dB) 52dB
Bit Rate 256Kbps～8Mbps
Illumination 0Lux (IR ON)
Lens
Lens 3.6mm
Viewing Angle H: 78.5°, V: 42.8°, D:92.6°
IR-LEDs 4x IR-LED + 4x Warm-LED
IR-Distance Up to 30 Meters
Function
Email Alert Support
Day& Night Support
Recording Support (NVR, Windows PC, Smartphone)
DHCP Support
FTP Not Supported
Pan/Tilt Not Supported
SD-Card Not Supported
Privacy Mask Support up to 8 areas
Exposure Control Support
Image Adjustment Support
Auto. White Balance Support
Image Rotation Support (Mirror/Flip)
Network
Ethernet 10M/100M Ethernet, RJ45 Port
Protocols
HTTP, TCP/IP ,UDP, ICMP, RTSP, RTP, RTCP,
SMTP, DHCP, DNS
Stream 2x Streams
Wi-Fi Not Supported
LAN Support
ONVIF ONVIF 2.4
User Up to 13 Users
Browser IE8+, Chrome18+ ~ 42-Smart Phone iOS/Android

JOVISION JVS-N935-ADL 3.0MP Dual Light Video & Audio PoE Network Camera, a versatile and advanced surveillance solution designed to elevate your security monitoring experience. With its impressive 3.0-megapixel resolution, this camera delivers crisp and clear images, ensuring that every detail is captured for effective surveillance. Whether it’s day or night, the dual light technology enables exceptional performance, providing vibrant color images in low-light conditions and ensuring your property is monitored at all times. The JVS-N935-ADL is equipped with dual light capabilities—a combination of infrared (IR) night vision and white light illumination.

Key Features

• Full-Color with Dual Smart Illumination
• Agi Sense Technology for accurate Humanoid Detection and Vehicle Detection
• 4Built-in Mic and Speaker
• AI-ISP for excellent video performance
• Equipped With unique VQC (Video Quality Catalyst) Technology
• Integrated with unique SAFE function

In summary, the JOVISION JVS-N935-ADL 3.0MP Dual Light Video & Audio PoE Network Camera is the perfect solution for those seeking a reliable and high-quality surveillance system. With advanced imaging technology, dual light capabilities, and audio support, this camera is an excellent choice for enhancing the security of your home or business. Upgrade your surveillance with the JVS-N935-ADL today!

Specification :

Video
Image Sensor 1/2.82″ CMOS Sensor
Max Resolution 3840*2160
Effective Pixels 8.0MP
Compression Standard H.264/H.265
Framerate 25fps
Bitrate
Main Stream: 256Kbps ~ 10Mbps
Sub Stream: 68Kbps~3072Kbps
SNR (dB) 49.3dB
Min. Illumination 0Lux (light ON)
Interface Type M12
Lens 2.8mm
FOV 2.8mm:H 104.3°, V 57.9°, D 121.8°
Function
Audio Codec G.711U/G.711A (default)
Exposure Control Auto, HLC, BLC
White Balance Auto
Gain Control Auto
OSD Information Setting Large font OSD, OSD flashing on alarm, OSD position settings
SNTP Support
Schedule Reboot Support
Smart Defog Support
Motion Detection Support Humanoid Detection & Vehicle Detection
Image Setting Support Saturation, Brightness, Contrast, Sharpness adjustment
Image Style Standard, Soft, Transparent
Day and Night Function Auto, Always Black & White, Always Color, Scheduled Color
Privacy Mask Support up 8 areas
Night Vision Optimization Support
WDR Support
Screen Settings Screen mirroring, Screen flipping
IP Adaptation Support automatic adaptation of IP address (Optional)
Alarm Method Email Alarm, Client Alarm
Remote Operation System, Audio and Video, Image, Alarm, Network management
VQC Technology Support
SAFE Function Support
Network
Ethernet 10/100Mbps Ethernet
Stream 2x Streams
Network Protocols HTTP, TCP/IP, UDP, ICMP, RTSP, RTP , RTCP, SMTP, DHCP, DNS
ONVIF Standard ONVIF
Network Transmission CloudSEE 2.0
Browser IE8+, Chrome18+, Firefox5.0+, Safari5.02+
User Up to 13 Users
App Support iOS/Android
