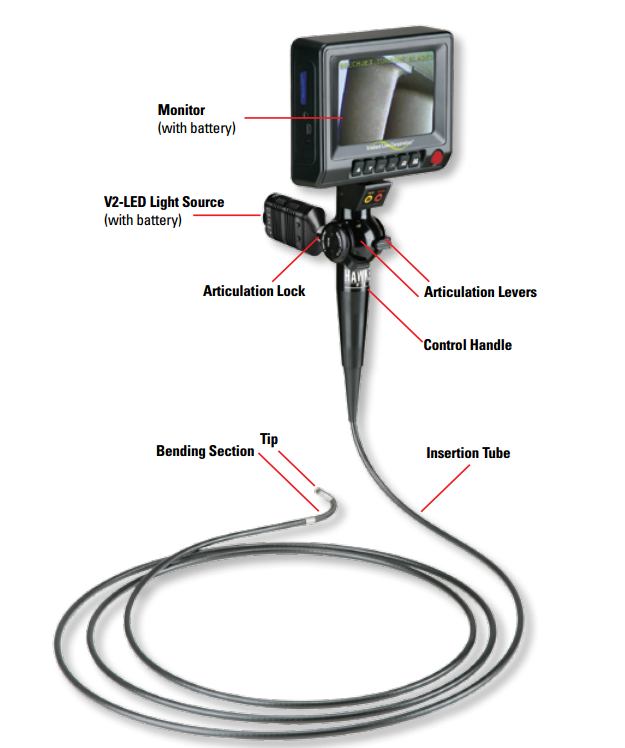

Hawkeye ® V2 Video Borescope

The Hawkeye® V2 Video Borescope consists of a CMOS image sensor mounted in the tip of aflexible insertion tube.The insertion tube is attached to a control handle that allows remote control of the tip position. The built-in monitor monitors the image in real time. It can also capture and store still images or video clips.

Insertion Tube

All models have a stainless steel monocoil at their center for resistance to accidental crushing, and have a tungsten outer braid to resist damage while sliding over harsh surfaces.

THE INSERTION TUBE IS ELECTRICALLY CONDUCTIVE. DO NOT ALLOW CONTACT WITH ELECTRICALLY LIVE OBJECTS. SERIOUS INJURY OR DEATH MAY RESULT!

Bending Section

The bending section houses the articulating collar assembly. This is the most flexible part of the scope, and the most vulnerable. It cannot tolerate the same rough handling as the insertion tube.
TAKE CARE NOT TO CRUSH OR PINCH THIS AREA.

Articulation Levers

Maximum bending of the tip will be possible when the insertion tube is fully extended.
DO NOT TRY TO FORCE THE TIP TO BEND WITH THE INSERTION TUBE COILED FOR STORAGE.

Articulation Locks

When engaged, the articulation locks will prevent the tip from bending.
DO NOT ATTEMPT TO WITHDRAW THE INSERTION TUBE FROM A CAVITY WITH THE LOCKS
ENGAGED. DOING SO MAY DAMAGE THE ARTICULATION MECHANISM.

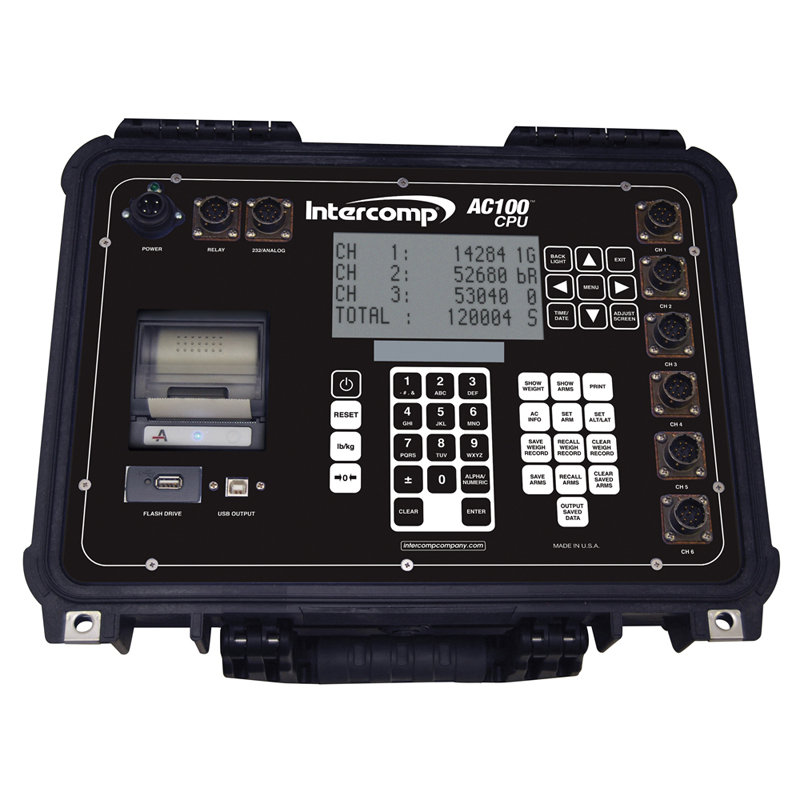

AC100 CPU

40 CONTROL KEYS:On/Off, Reset, kg/lb, Zero, Clear, Enter, a Numeric Keypad, Adjust Screen, Back Light, Time/Date, Exit, Menu, Four Arrow Keys, Show Weight, Show Arms, Print, AC Info, Set Arm, Set Alt/Lat, Save Weigh Record, Recall Weigh Record, Clear Weigh Record, Save Arms, Recall Arms, Clear Saved Arms, & Output Saved Data.

• Display Individual Load Cell, Group & Total Weight,Mac% & C.G.
• Specific Hot Keys for Primary Functions
• Operates up to 32 Load Cells Simultaneously
• Operates on D-Size Batteries to 40 Hours Continuously
• On-Board Printer for Complete Report
• Store up to 1000 Aircraft Types & Arm Lengths
• Memory Storage & USB/RS232Output

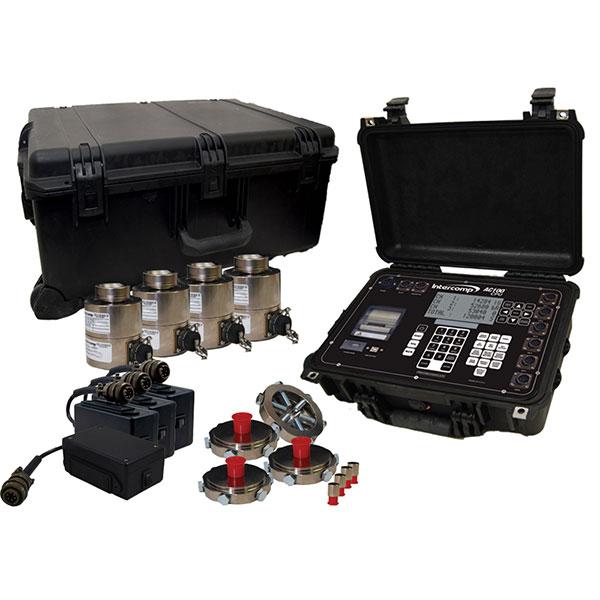

Jack Weigh RFX ™Kit

• Configurations for Civil, Military & Commercial Aircraft
• Interchangeable Components Between Kits
• Includes AC100 CPUDigital Output Load Cells, Jack
& Aircraft Adapters, Power Supply & Transport/Storage Case
• Models Approved to USAF PDLEEG17

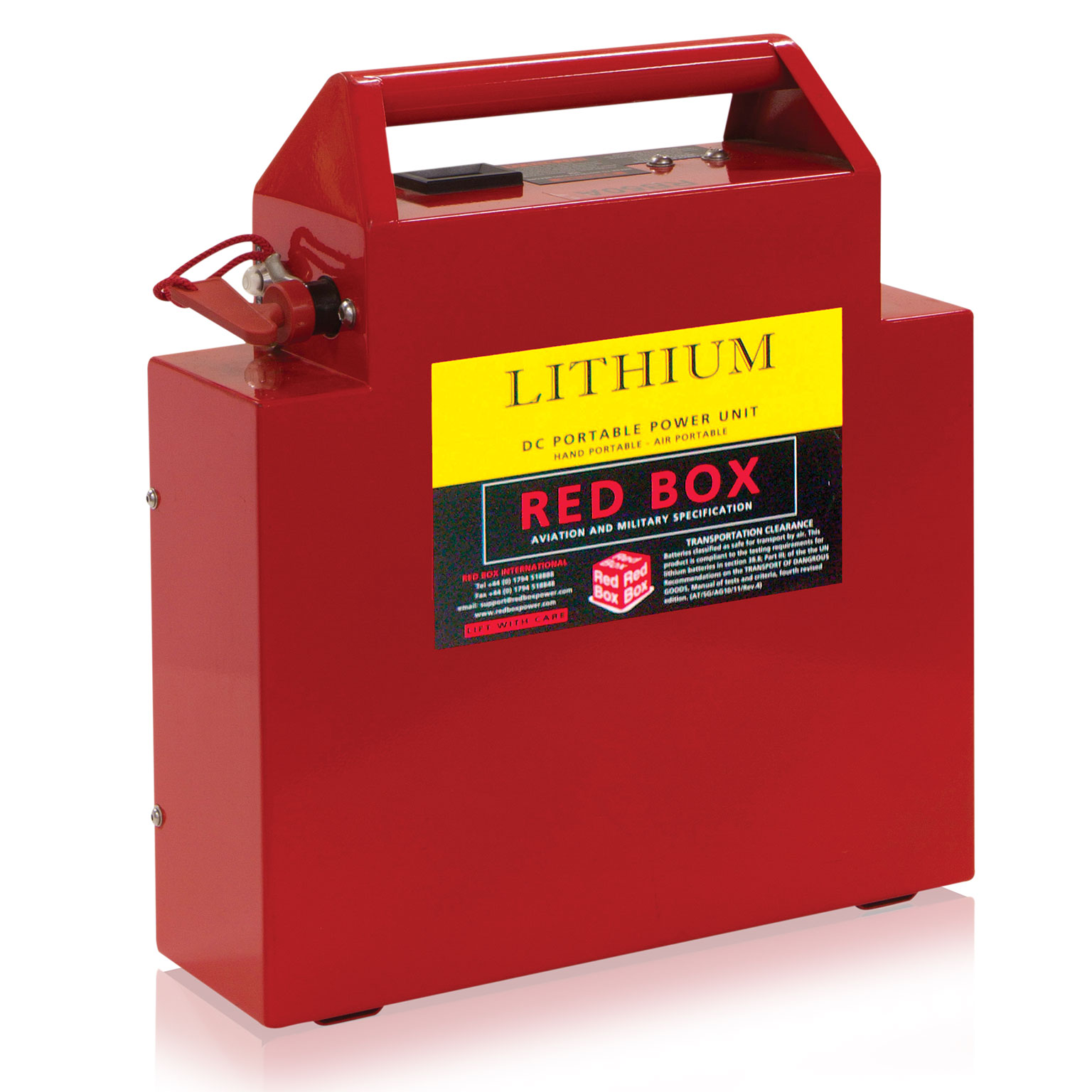

MODELRBL4000 LITHIUM

HAND / AIR PORTABLE POWER UNIT FOR AIRCRAFT AND COMBAT VEHICLES

· Totally weather protected.
· Air transportable.
· Maintenance free.
· T ough and compact.
· No memory effect.
· Works in any orientation.
· Fast recharge.
· No cycling.
· Leak proof.
· Cells replaceable on condition.
· Starts piston, turbine and turbo prop aircraft and helicopters
· Lightweight portable start power at remote locations.
· External charger for prolonged unit life.
· Starts commercial and military vehicles
